Installation Guide - Linux Version (using Denbun POP update version [tar file])

1. Upload the file to the server

Upload the file you downloaded to the server by using FTP tools (freeware or Windows FTP command).

2. Login by using telnet

Login to the server by using telnet tool (freeware or Windows telnet tool).

3. Switch to root user

Use su command to switch to the root user.

4. Extract archive

Move uploaded file to the directory that Denbun is installed. It assumes that the installation directory is "/var/www/cgi-bin".

Use tar command to extract the tar file.

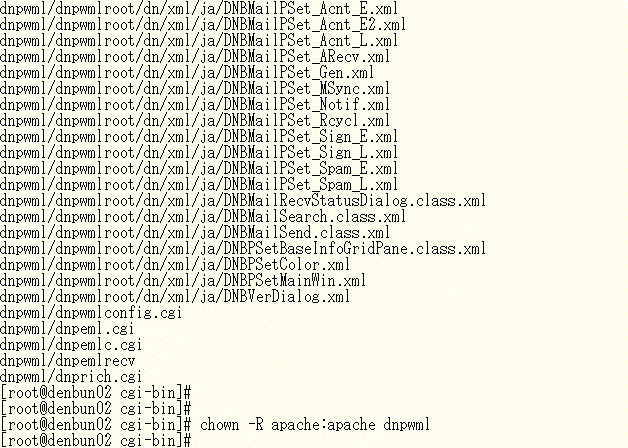

5. Change owner

Change the owner of the directory "dnpwml" that Denbun is installed.
If Denbun is installed in "/var/www/cgi-bin/dnpwml", set "User ID" and "Group ID" of the directory "/var/www/cgi-bin/dnpwml" to the user who provides HTTP service
(It assumes that both "User ID" and "Group ID" is "apache").

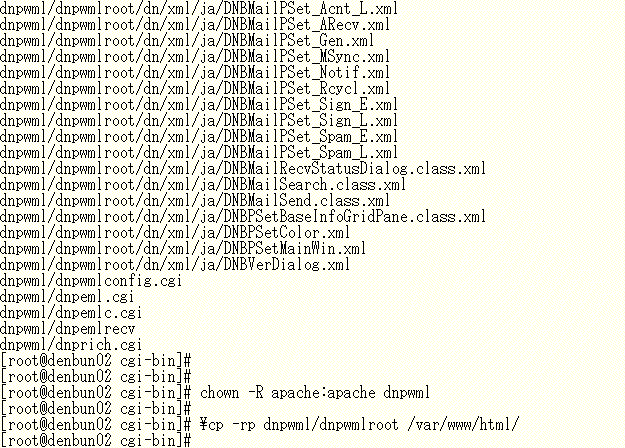

6. Move dnwmlroot to document root

Move dnpwmlroot directory extracted to the web server's document root.

* Please overwrite all the files.
* dnpwmlroot directory might not be included in certain type of update module.
* After copying all the files in dnwmlroot, you can delete dnpwmlroot directory in dnpwml.

7. Update

After the installation, update the data.
To update the data, use the following command.
* Use su command to switch to the administrator of the database.
* The directory "UPD_VxxRxx_VxxRxx" might not be included in certain type of update module.
 If the directory does not exist, you do not have to execute the update module.

When executing update.sh,
password may be required.
In this case, enter the password for dnpwml user.
In the default, it is "dnpwml".

If anything is displayed after executing update.sh, the update terminated normally.
After the update, delete the directory, UPD_VxxRxx_VxxRxx.
If you need the log, move UPD_VxxRxx_VxxRxx/log to any directory.
Use su command to switch to the root user.

8. Run convert module [Important]

You may have to convert the data when upgrading to the specific version.
If the conversion is not done successfully, the program does not work correctly.
Please refer the following links for conversion procedure for each version.
If you do not find the link for the version you are going to install, you do not have to convert the data.

• When you do version up from "V1.1P R1.2" to "V2.0P R4.3". (Japanese Only)
• When you do version up from "V3.0P R1.1" to "V3.1P R1.0".

Delete the file which executed the following commands and as for which the case in use became unnecessary about V3.1P R2.0. ("excite translation" functional related file deletion)

rm -r /var/www/cgi-bin/dnpwml/dnpwmldata/1/excitetrans

rm -r /var/www/cgi-bin/dnpwml/dnptranslation.cgi

rm -r /var/www/cgi-bin/dnpwml/dnpwmlpage/ja/xsetexcitetrans.html

rm -r /var/www/cgi-bin/dnpwml/dnpwmlpage/en/xsetexcitetrans.html

9. Security Measure [Important]

After installation, configure the web server.
Configure the setting below so that the data directory for Denbun cannnot be executed from browsers.
* Even though Denbun will still operate without the configuration, please make sure to configure it for security purpose.
* Skip this part if already configured.

• Security Configuration

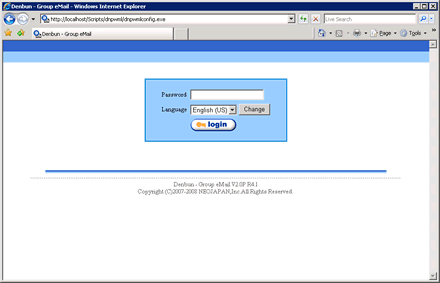

10. Access to Denbun

After complete the above steps, use browser such as Internet Explorer to access to Denbun.

URL e.g.
http://(servername)/cgi-bin/dnpwml/dnpwmlconfig.cgi?

* Your server's IP Address or Host name should be specified in "servername".

Make sure that the updated version number is displayed on the login screen.

1. Uninstallation

If you uninstall Denbun update version only, Denbun will never work.
Please never uninstall the update version.
* Please be careful because you are root user.
